Suntor's backpack mesh network radio can provide individual soldier application system, aerial reconnaissance application system, ground vehicle application system. It can not only realize the interconnection between individual soldiers, but also realize the dynamic networking between individual soldiers, aerial drones and ground moving vehicles. It can realize the rapid linkage between each unit and form a powerful air-ground integrated wireless network transmission architecture. The command unit can grasp the real-time audio and video information of each front-end unit and the real-time status of various sensor units to quickly give command commands, timely respond to various emergencies, and win favorable conditions.
Product Introduction
Product Features
Centerless networking: Nodes have equal positions and can be used as terminal nodes, relay nodes or central nodes;
Arbitrary structure networking: nodes automatically identify optimal bandwidth data routing;
Security and confidentiality: Support AES128/256 through layer-by-layer encryption such as working frequency, carrier bandwidth, scrambling code, etc.;
Anti-interference and anti-destruction: Use COFDM, MIMO, ARQ and other technologies to improve data bandwidth and anti-interference performance;
Flexible multi-node networking: Automatically calculate link routing based on channel quality, rate, bit error and other indicators for flexible networking;
All-IP network interoperability: supports transparent data transmission, interconnection and interoperability of multiple systems, and real-time interaction of multimedia services;

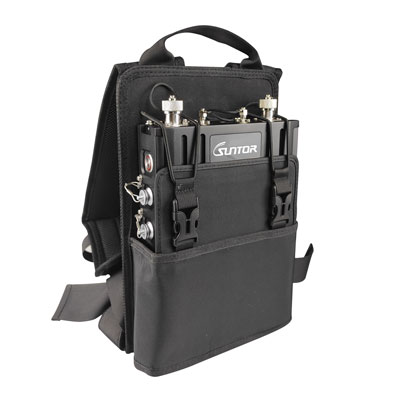

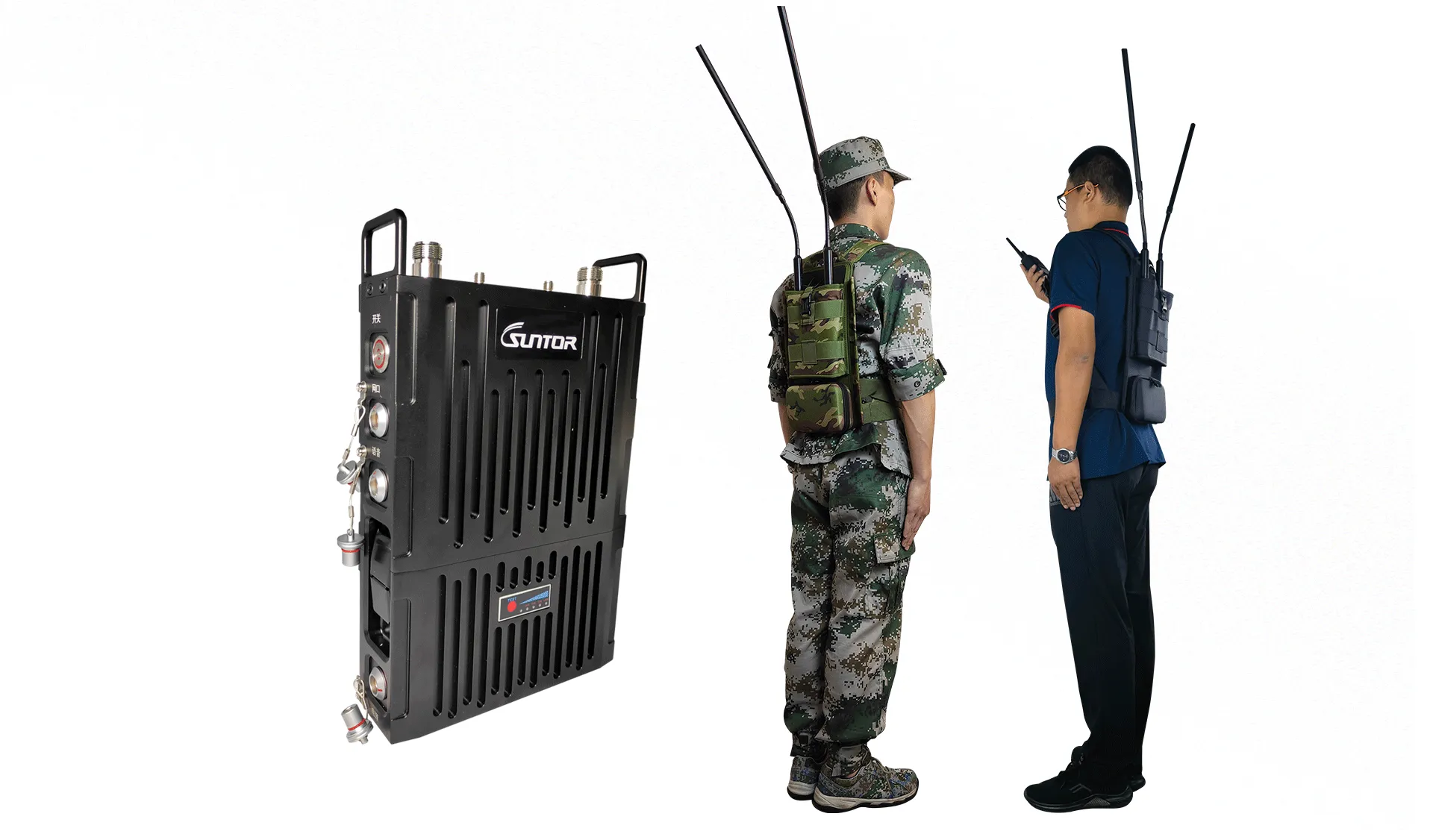

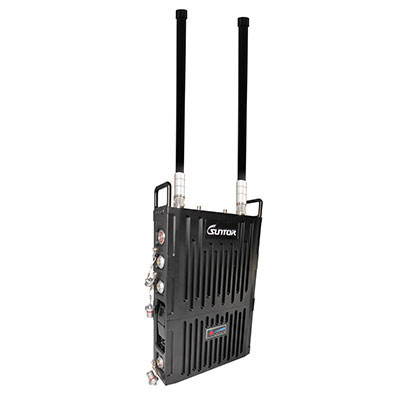

Backpack Radio to Free Your Hands
The backpack-type self-organizing network radio for individual soldiers is small in size, light in weight, and equipped with a high-capacity removable battery, making it easy for individual soldiers to carry on their backs and fully freeing their hands.

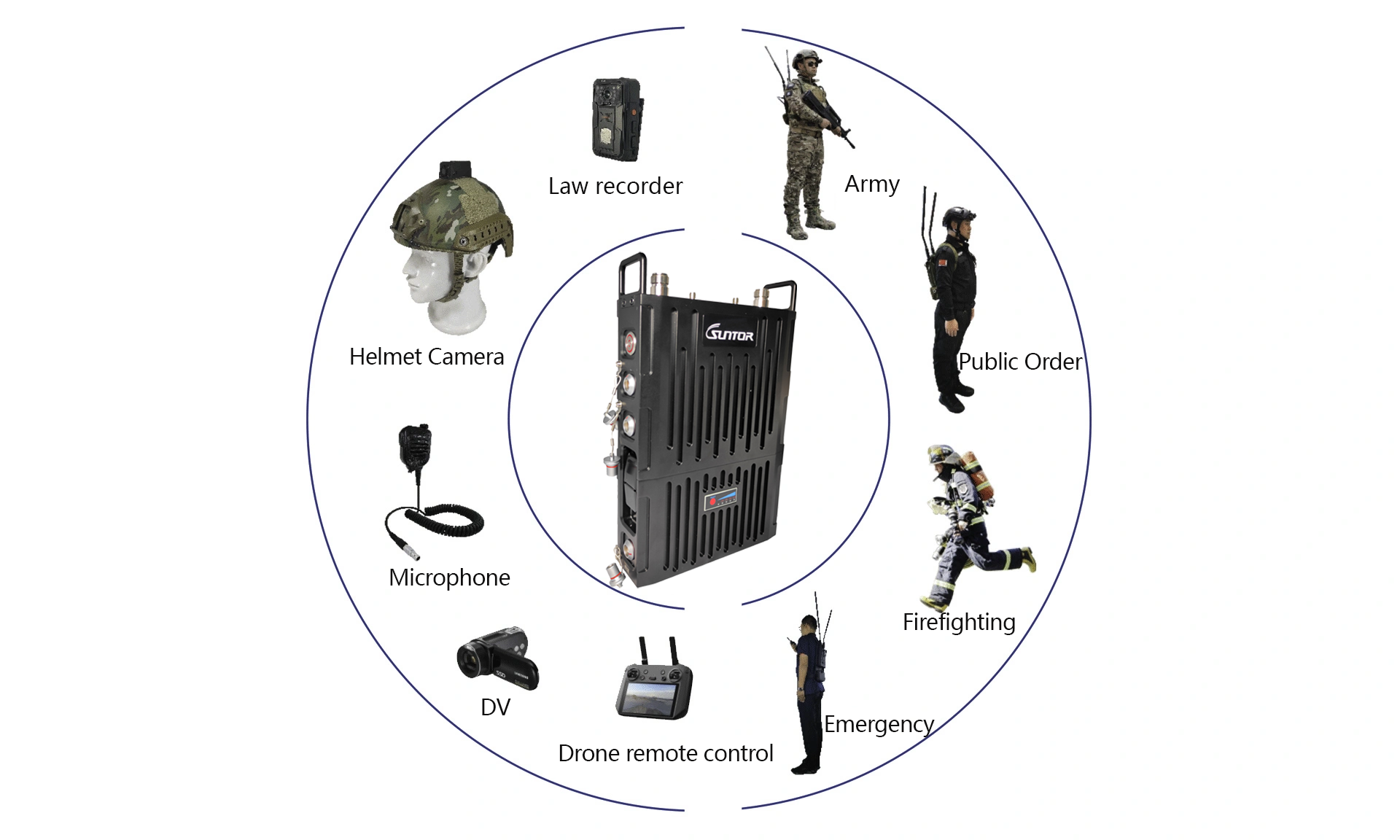

Front-End Collection
The front end can be connected to various video collections such as legal recorders, helmet cameras, hand microphones, DV, and drone remote controls.

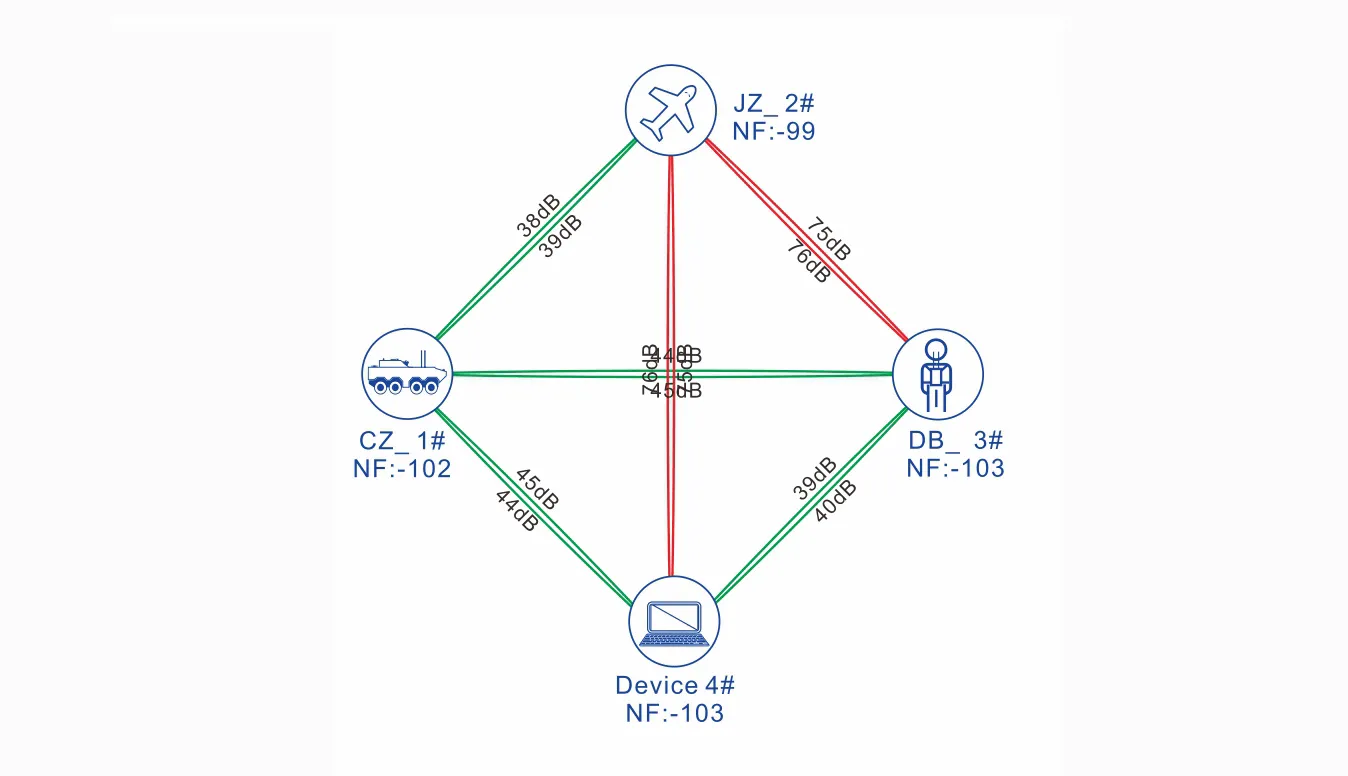

Centerless Networking
Diagram
System Parameter | ||
Operating frequency | 1428~1448MHz | |
Bandwidth | 5/10/20MHz,Flexible and configurable | |
Transmission system | COFDM | |
Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) | |
Transmission capacity | Peak rate 90Mbps@20MHz | |
RF Transmitted power | 2W | |
Receive Sensitivity | -97dBm@1MHz | |
Video input | Support IP network video input , WIFI video access (HDMI video input need to be customized) | |
Networking function | Networking capable | ≥52 nodes |
Networking hops | ＞10 hops | |
Access time | 5s after start up of the system | |
Network topology | Centerless network, star network, chain network, mesh network, etc | |
Encryption mode | AES128/AES256 | |
Power supply mold | Allocate DC 25.2V removable lithium battery | |
Power Consumption | ≤30W | |

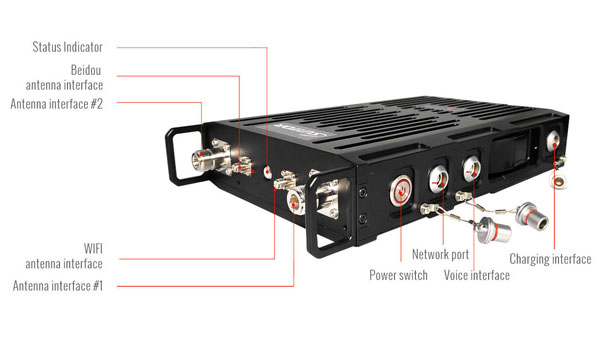

Equipment interface | ||
Antenna interface | N-K×2 | |
GPS interface | SMA-K | |
WIFI interface | SMA-K | |
Ethernet interface | Aviation interface,Support 100M network interface | |
Audio interface | Aviation interface,Support hand microphone or earphone | |
Physical indicators | ||

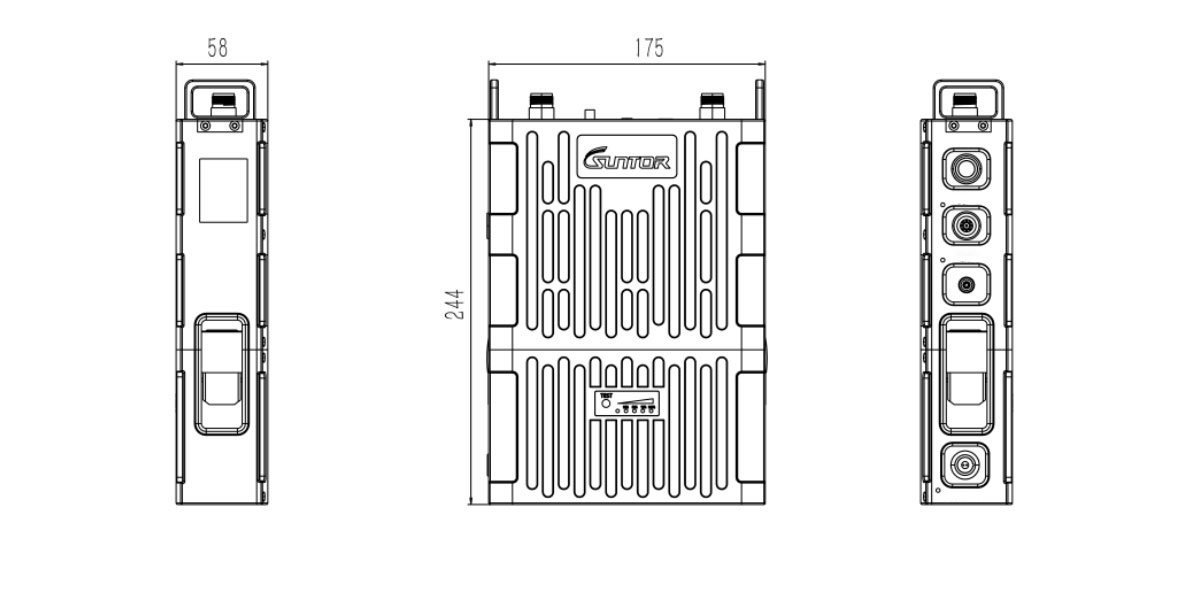

Dimension | ≤275mm × 198mm ×52mm(include battery) | |
Equipment Weight | ≤3kg(include battery) | |
Protection degree | IP66 | |
Working temperature | -30℃～+65℃ | |
Application
Wireless broadband communications are provided for "peace and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, emergency rescue and disaster relief, daily patrols, and firefighting.
