Model: MF43S
Using advanced Mesh self-assembling network equipment, the right amount of long-distance MESH base stations are installed on the watchtower, with forest protection vehicle MESH, forest patrol helicopter airborne MESH, forest protection inspector single Mesh, etc., to establish a special wireless transmission monitoring network for forest fire prevention, to transmit real-time video data, environmental data, etc. to the forest scheduling command center, forming a real-time monitoring of the entire forest area Monitoring, to achieve advance prediction, advance prevention, advance action. The forestry car equipped with satellite communication, can also be in the Mesh network and 4G network can not cover the place, through the satellite directly to the data ahead back to the command center.
Product Details

Product Introduction:

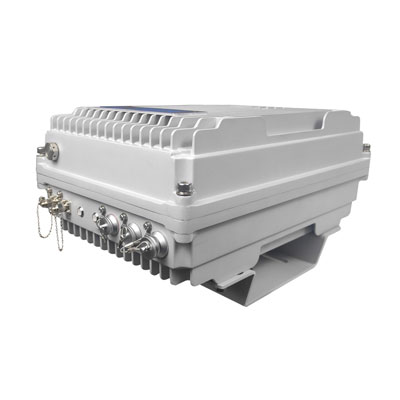

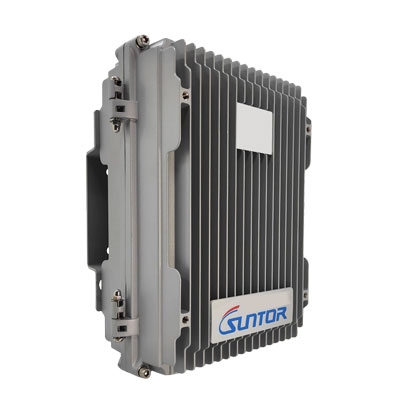

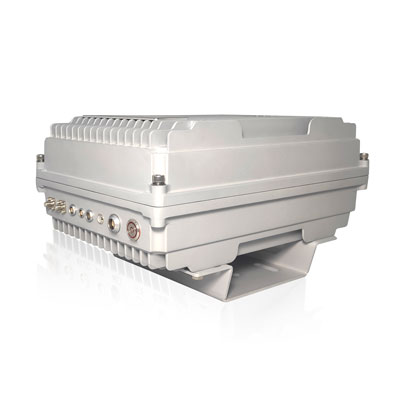

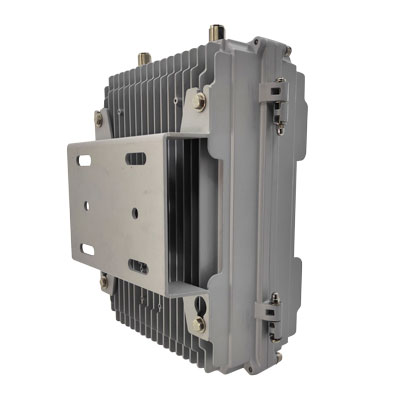

MF43S Fixed Mesh Base Station, can be fixed by holding pole, wall hanging and bracket, mainly deployed in outdoor fixed points, ship mobile points, waterproof and dust-proof, easy installation, simple operation. The device has large transmission power, long communication coverage distance, set data transceiver, dynamic routing, relay and forwarding, and quickly self-group with other node devices to form a wireless multi-hop broadband network, providing users with wireless transmission services of voice, data, video and other multimedia services. All nodes in the line-of-sight or non-line-of-sight environment, there is no need for a central gateway, all nodes have equivalent status, do not rely on wired communication lines, and can quickly establish a wireless communication network. Especially suitable for remote coverage link communication, information convergence and return, regional coverage support, enhanced coverage of commanding heights and relay transmission nodes and other applications, can play a strong advantage in rescue and disaster relief, large-scale event support, temporary layout control and relay transmission. The transmission distance can be more than 20km in the open environment, 1-5km in the blocking environment (depending on the blocking environment), and more than 50km from air to ground.






Product Features:


  • Center less networking: nodes have equal status, i.e. as terminal nodes, relay nodes or central nodes;

  • Arbitrary structured networking: automatic identification of nodes to select the optimal route for bandwidth data;

  • Security and confidentiality: AES128/256 support through layers of encryption such as working frequency, carrier bandwidth and scrambling code;

  • Anti-interference and anti-destruction: COFDM, MIMO, ARQ and other technologies are used to improve data bandwidth and anti-interference performance;

  • Flexible multi-node networking: automatic calculation of link routing and flexible networking based on channel quality, rate, BER and other indicators;

  • All-IP network interoperability: support for data transmission, interconnection and interoperability of multiple systems, and real-time interaction of multimedia services;




Application:

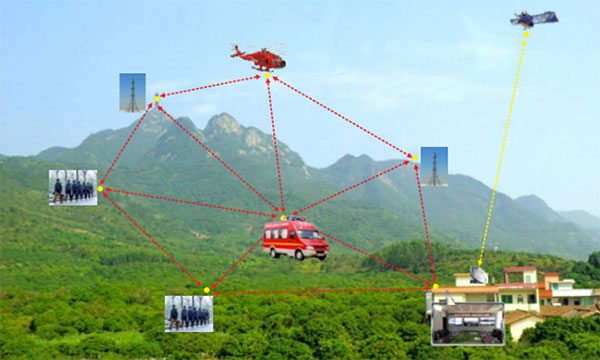

Wireless Broadband Mesh Forest Monitoring Guarantee:

Using advanced Mesh self-assembling network equipment, the right amount of long-distance MESH base stations are installed on the watchtower, with forest protection vehicle MESH, forest patrol helicopter airborne MESH, forest protection inspector single Mesh, etc., to establish a special wireless transmission monitoring network for forest fire prevention, to transmit real-time video data, environmental data, etc. to the forest scheduling command center, forming a real-time monitoring of the entire forest area Monitoring, to achieve advance prediction, advance prevention, advance action. The forestry car equipped with satellite communication, can also be in the Mesh network and 4G network can not cover the place, through the satellite directly to the data ahead back to the command center.






Accessory list:







System Parameter

Specification Description

Frequency Range

1300-1500MHz

RF Bandwidth

5/10/20MHz

Modulation Mode

COFDM

Constellation  Modulation

BPSK/QPSK/14QAM/64QAM(Self-Adaptation)

Transmission  Distance

>50km (Visual  Distance)

Receiving  Sensitivity

-97dBm@1MHz

Transmission Rate

Peak Value  90Mbps@20MHz

WIFI

Support 2.4G WIFI Function

Transmitted Power

20W

Video Input)

Supports IP Network  Video Input and WIFI Video Access

Voice Intercom

Hand Microphone or  Earphone Optional

Networking Function

Networking  Capability

Supports more than  64 nodes

Network Hop

>8hops

Access Time

Access the network   within 5 seconds after the system starts

Network Topology

Chain, star, mesh,  etc

Network Transparent Transmission

Supports Layer 2 transparent transmission

System Function

Peripheral Interface

Ports, Audio Ports, and Serial Ports

Video Input

Supports IP and WIFI input

Control Function

Supports the Network Management System Platform

System Parameter

Encryption Mode

AES128/AES256

Power Supply Mode

The AC220V Adapter Port is a DC24V DC input

Power Consumption

≤90W

Device Interface

Antenna Interface

N type x 2

GPS Interface

N-type

WIFI Interface

N-type

Data Interface

RJ45

Physical Index

Equipment Size

340*240*135mm

Equipment Weight

5.4kg

Protection Class

IP68

Operating Ambient Temperature

-40℃~+75℃
