Self-organizing radio station for unmanned systems: small in size, light in weight, can be installed directly or reversely, easy to install, especially suitable for applications with lightweight networking requirements such as drones, unmanned vehicles, unmanned boats, and robots. Scenes. With fast network access and automatic multi-hop relay, it can quickly form an interconnected three-dimensional network with handheld individual soldier systems, vehicle-mounted systems and surrounding base station networking equipment to achieve efficient collaboration. The transmission distance can reach more than 10km in open ground environment, 300~1000m in blocked environment (depending on the blocked environment), and more than 30km from air to ground..

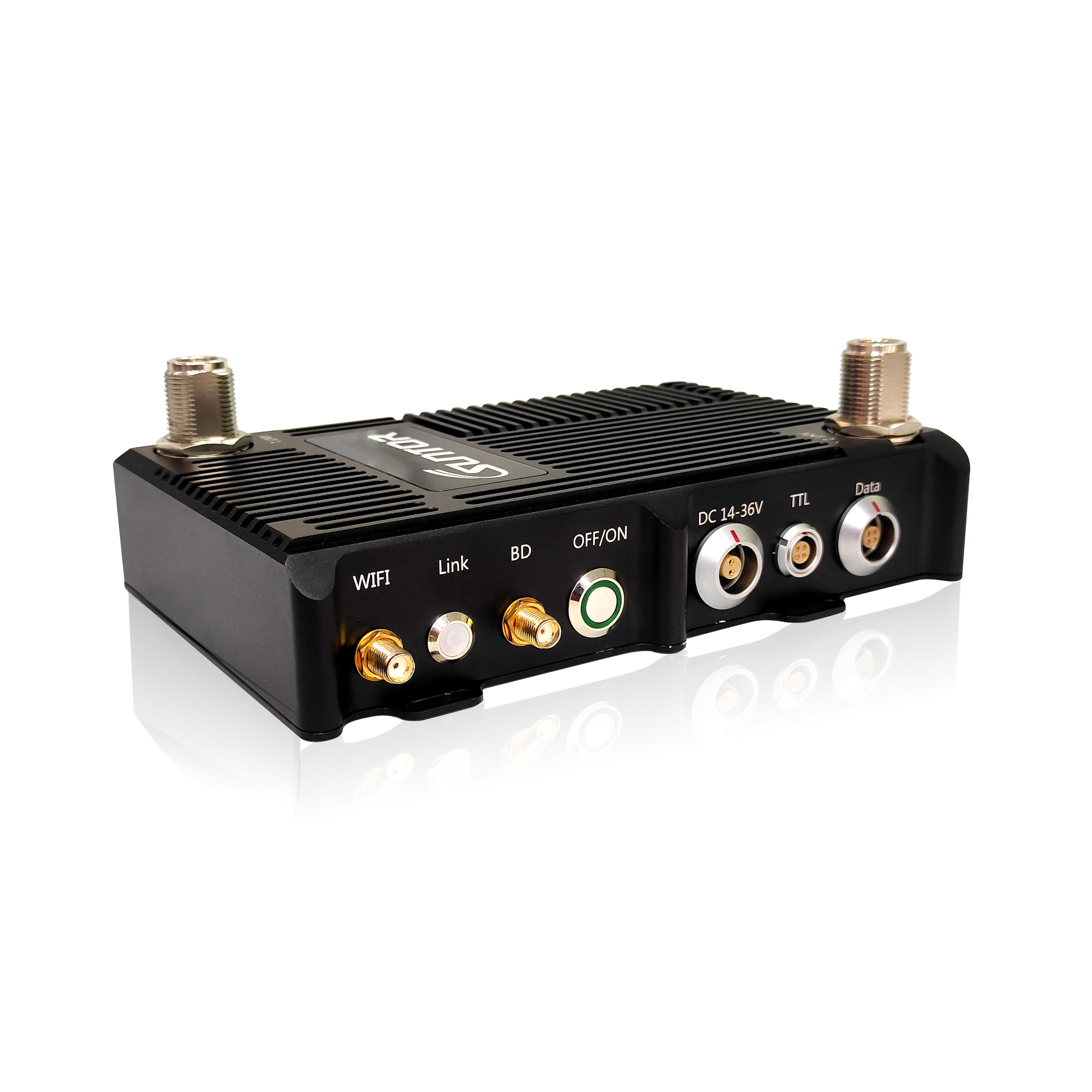

Product Introduction
Product Features
Centerless networking: nodes have equal status, i.e. as terminal nodes, relay nodes or central nodes;
Arbitrary structured networking: automatic identification of nodes to select the optimal route for bandwidth data;
Security and confidentiality: AES128/256 support through layers of encryption such as working frequency, carrier bandwidth and scrambling code;
Anti-interference and anti-destruction: COFDM, MIMO, ARQ and other technologies are used to improve data bandwidth and anti-interference performance;
Flexible multi-node networking: automatic calculation of link routing and flexible networking based on channel quality, rate, BER and other indicators;
All-IP network interoperability: support for data transmission, interconnection and interoperability of multiple systems, and real-time interaction of multimedia services;
Centerless Networking

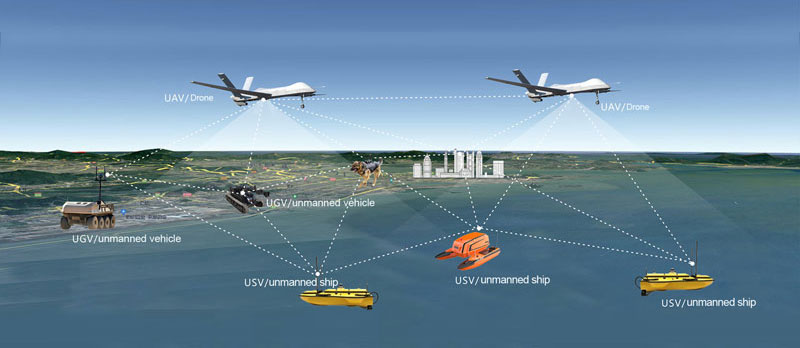

Nodes with equal status can serve as terminal nodes, relay nodes or central nodes. Nodes automatically identify and select the optimal route for bandwidth data.
Diagram
System Parameter | ||
Frequency Range | 300-1500MHz | |
Rf Bandwidth | 5/10/20MHz | |
Modulation Mode | COFDM | |
Constellation Modulation | BPSK/QPSK/16QAM/64QAM(Self-Adaptation) | |
Transmission Distance | ＞30km(Visual Distance) | |
Receiving Sensitivity | -97dBm@1MHz | |
Transmission Rate | Peak Value 90Mbps@20MHz | |
WIFI | Support WIFI Function | |
Transmitted Power | 2W | |
Video Input | Supports IP Network Video Input and WIFI Video Access | |
Voice Intercom | Optional Hand Microphone or Earphone | |
Networking Function | Networking Capability | Supports more than 64 nodes |
Network Hop | >8 hops | |
Access Time | Access the network within 5 seconds after the system starts | |
Network Topology | Chain, star, mesh, etc | |
Network Transparent Transmission | Supports Layer 2 transparent transmission | |
System Function | ||
Peripheral Interface | Ports, Audio Ports, and Serial Ports | |
Video Input | Support IP, WIFI input, HDMI(optional) | |
Control Function | Supports the Network Management System Platform | |
System Parameter | ||
Encryption Mod | AES128/AES256 | |
Power Supply Mode | DC12~36V wide voltage supply | |
Device Power Consumption | Peak power consumption ≤24W, standby power consumption ≤6W | |
Device Interface | ||
Antenna Interface | N type x 2 | |
GPS Interface | SMA head | |
WIFI Interface | SMA head | |
Data Interface | RJ45 Network port (HDMI/CVBS/ serial port optional | |
Physical Index | ||

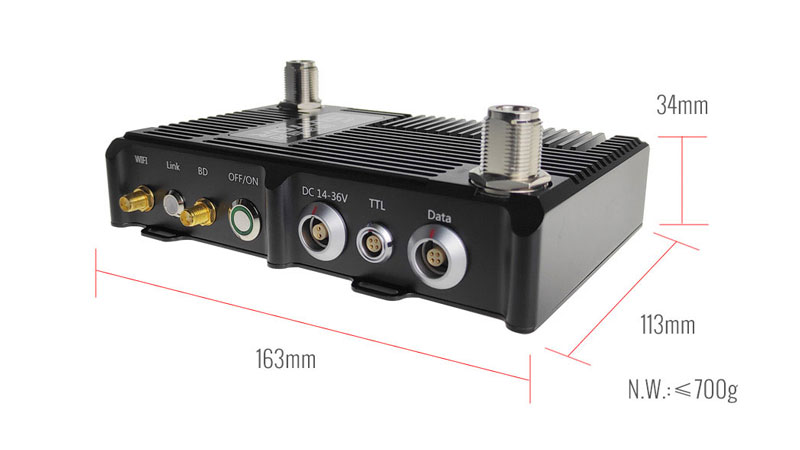

Equipment Size | 163*113*54mm | |
Equipment Weight | 653g | |
Protection Class | IP65 | |
Operating Ambient Temperature | (-40℃~+75℃) | |
Application
Through the unmanned system cluster, it is built into a huge information coverage network, while maintaining interconnection and interoperability among each other, and can collaborate to complete the assigned tasks in a certain formation according to the site situation. At the same time, it is equipped with wireless self-organizing network cluster communication, which is centerless, highly destructive and highly self-healing, and can be dynamically autonomous according to the site, and can quickly self-regulate to supplement the interrupted network once it encounters a failure or accident, so that the whole network system still maintains an efficient and orderly operation.
