Model: MF43X
The MESH self-organizing network transmission equipment of Suntor can provide single soldier application system, aerial reconnaissance application system and ground vehicle application system. It can realize interconnection between single soldiers and dynamic networking between single soldiers and aerial drones and ground moving vehicles, which can realize rapid linkage among units and form a powerful air-ground integrated wireless networking transmission architecture. The command unit can grasp the audio and video information of each front-end unit and the real-time status of various sensing units in real time to quickly issue command orders, respond to various emergencies in a timely manner and win favorable conditions.
Product Details

Product Introduction:

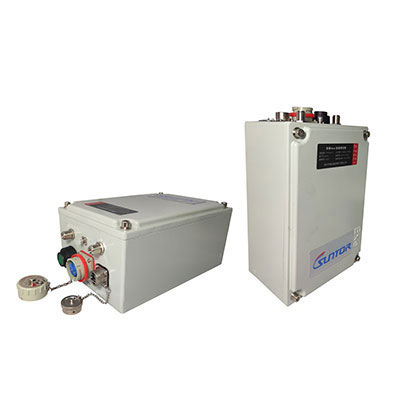

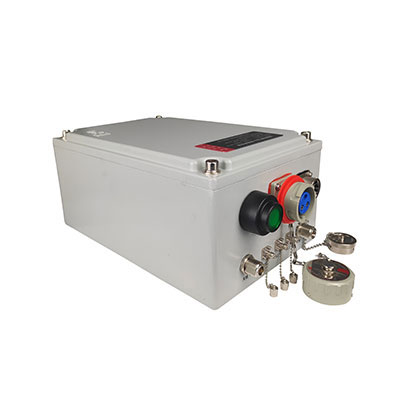

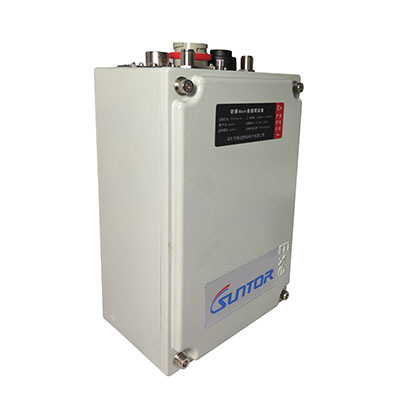

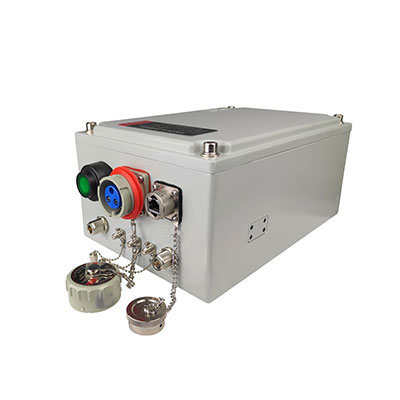

MF43X Explosion Proof Mesh Base Station can be fixed and installed by pole, wall hanging and bracket, etc. It is mainly deployed at outdoor fixed points and shipborne moving points. It is waterproof and dust-proof, easy to install and easy to operate. The device has large transmission power, long communication coverage distance, set data transceiver, dynamic routing, relay and forwarding, and quickly self-group with other node devices to form a wireless multi-hop broadband network, providing users with wireless transmission services of voice, data, video and other multimedia services. All nodes in the line-of-sight or non-line-of-sight environment, there is no need for a central gateway, all nodes have equivalent status, do not rely on wired communication lines, and can quickly establish a wireless communication network. Especially suitable for remote coverage link communication, information convergence and return, regional coverage support, enhanced coverage of commanding heights and relay transmission nodes and other applications, can play a strong advantage in emergency response, anti-terrorism and anti-riot, rescue and disaster relief, large-scale event support, temporary control and relay transmission. The transmission distance can be more than 20km in the open environment, 1-5km in the blocking environment (depending on the blocking environment), and more than 30km from air to ground.






Product Features:


  • Operating frequency 1428-1448MHz (200MHz-1.5GHz can be customized);

  • Up to 90 Mbps bitstream;

  • Line-of-sight transmission distance of 10-20 km;

  • Transparent transmission of IP data;

  • Support two-way intercom;

  • Centerless self-organizing network, automatic selection of path, flexible networking methods, easy to use;

  • Multi-hop to expand the coverage range and extend the coverage distance;

  • Long transmission distance;

  • High resistance to interference;

  • Good wrap-around properties;

  • Safe and stable;




Application:


Wireless Broadband Mesh Self-Assembly Network:

The MESH self-organizing network transmission equipment of Suntor can provide single soldier application system, aerial reconnaissance application system and ground vehicle application system. It can realize interconnection between single soldiers and dynamic networking between single soldiers and aerial drones and ground moving vehicles, which can realize rapid linkage among units and form a powerful air-ground integrated wireless networking transmission architecture. The command unit can grasp the audio and video information of each front-end unit and the real-time status of various sensing units in real time to quickly issue command orders, respond to various emergencies in a timely manner and win favorable conditions.

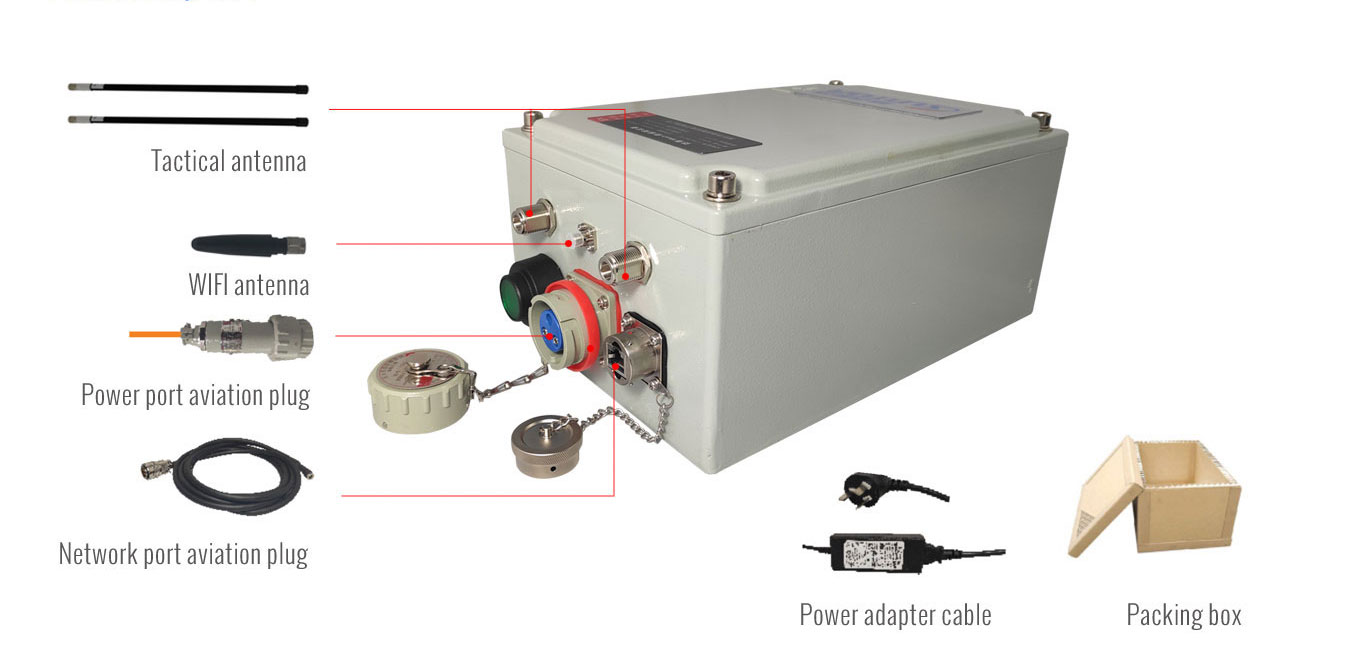

Accessory list:






System Parameter

Operating Frequency

1428~1448MHz

Carrier Bandwidth

5/10/20MHz, flexible and configurable

Transmission System

COFDM

Modulation Mode

BPSK/QPSK/16QAM/64QAM (Adaptive)

Transmission Capacity

Peak rate  90Mbps@20MHz

Transmitted Power

2W

Receiving Sensitivity

-97dBm@1MHz

Video Input

Supports IP network video input and WIFI video access

Networking Function

Networking Capability

≥52 Nodes

Network Hop

> 10 Hops

Access time

The system is  connected to the network for 5 seconds after hot start

Network topology

No central network,  star network, chain network, mesh network, etc.

Encryption Mode

AES128/AES256

Power Supply Mode

Built-in 25.2V lithium battery

Device Power Consumption

≤30W

Device Interface

Antenna Interface

N-K×2

WIFI Interface

SMA-K

Ethernet Interface

Waterproof interface

Charging Port

Explosion-proof  interface

Physical  Index

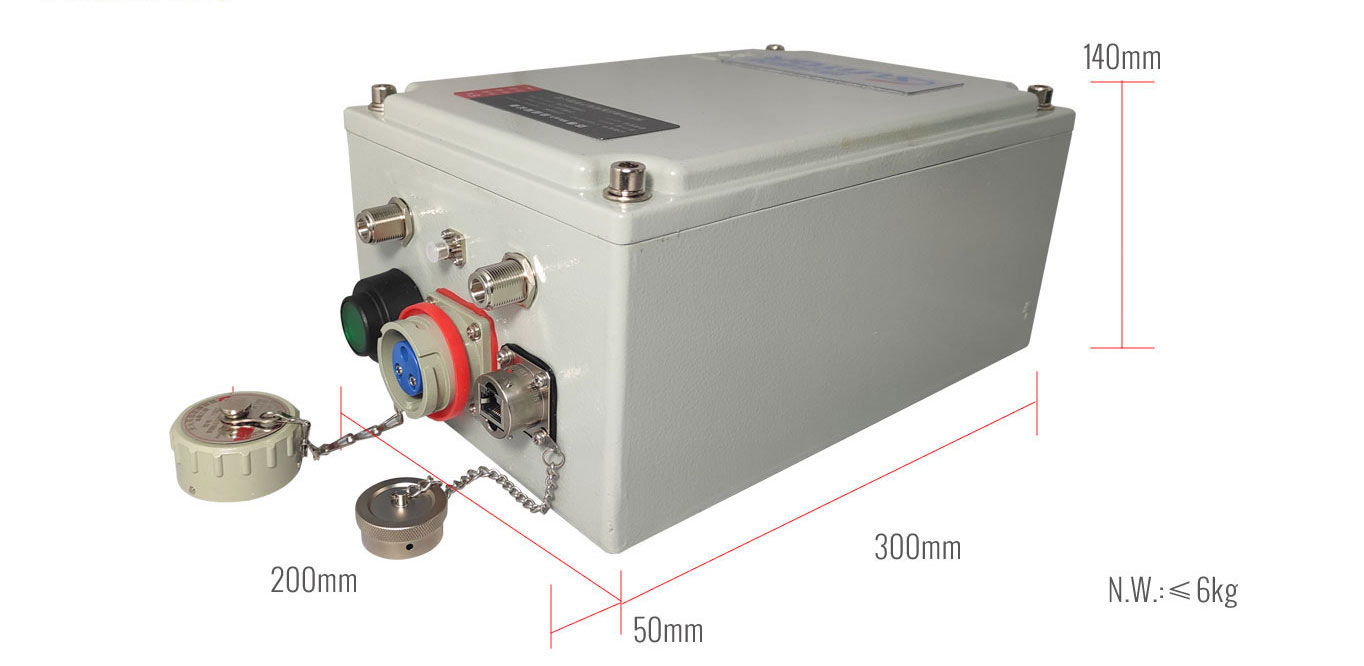

Equipment Size

≤355mm×200mm×160mm  (Battery containing)

Equipment Weight

≤5.8kg (Battery  containing)

Protection Class

IP65

Operating Temperature

-30+65
