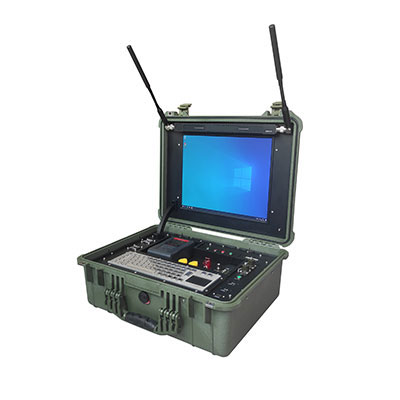

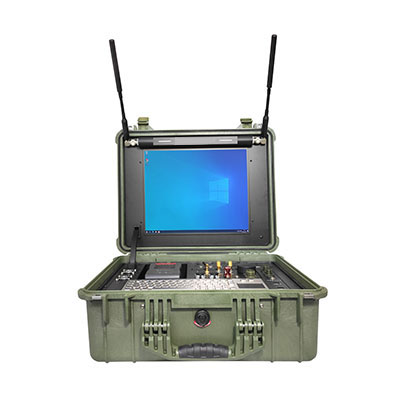

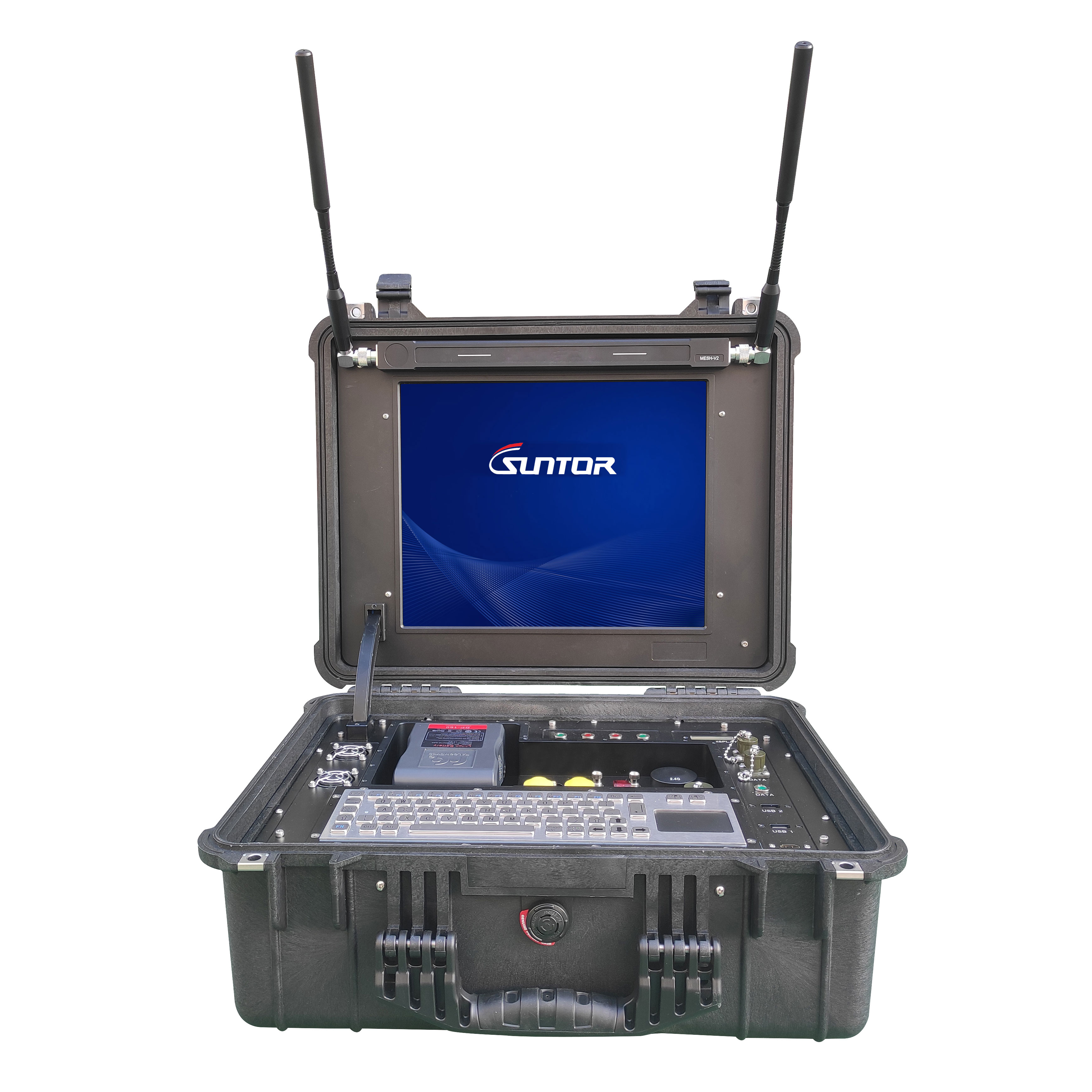

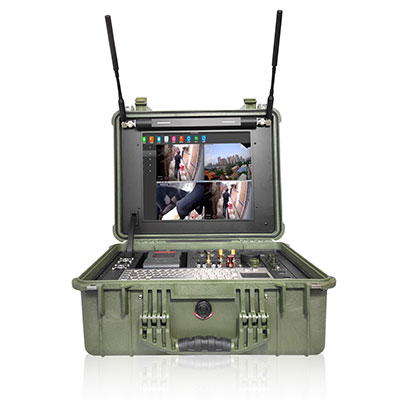

Intelligent Mesh communication system command box is an intelligent, portable and multifunctional emergency command and dispatch system independently developed by Suntor. It is a portable command and dispatch platform with the advantages of flexible networking and convenient operation. The equipment is widely used in all kinds of emergency places, such as electric power emergency repair, unmanned remote control, public security emergency control, maritime reconnaissance, fire emergency rescue, safety production supervision, etc., quickly establish a temporary command center for all kinds of emergency scene.
Product Introduction
Product Features
No center Ad-hoc network: section automatic path choice, generally, flexible, easy to use;
Coverage: far more jump expand coverage, expand the coverage distance;
Transmission distance: tong line-of-sight transmission distance 10-20 km;
Strong anti-interference performance: using COFDM, MIMO, ARQ technology, improve the data bandwidth and anti-jamming ability;
Security confidentiality: through the work frequency bandwidth, scrambler, carrier layers of encryption, such as support AES256;
Good diffraction, diffraction sexual ability strong, can be in blocking bad communication.
Centerless Networking
Nodes with equal status can serve as terminal nodes, relay nodes or central nodes. Nodes automatically identify and select the optimal route for bandwidth data.

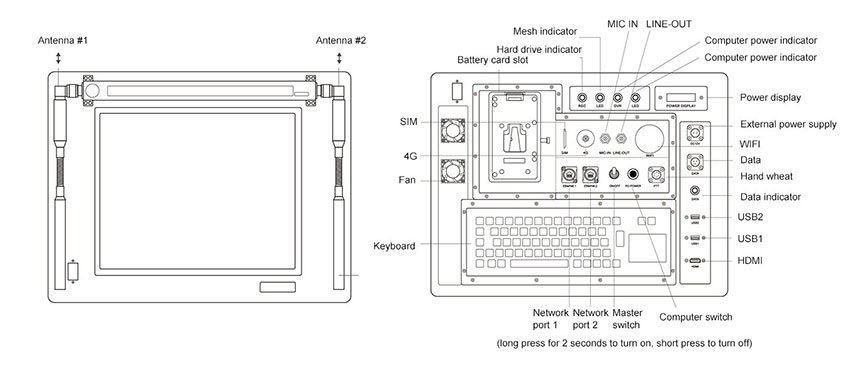

Diagram
Host characteristics | |
Operating System | WIN10/64 |
CPU | Intel I7 CPU |
Display Screen | 17 inch HD bright screen |
Memory | 16G |
Storage Mode | 240G SSD |
Mode of operation | Embedded mouse and keyboard |
Transmission Characteristic | |
Frequency Rang | 1438MHz(200MHz-1.5G can be customizable) |
Channel Bandwidth | 5M/10M/20M (adjustable) |
Transmitted Power | Max 33dBm |
Constellation Modulation | (BPSK/QPSK/16-QAM (Adaptive)) |
Forward error correcting code | 1/2, 2/3, 3/4, 5/6 Optional |
Digital Sensitivity | The highest -93dBm@5MHz |
Transmission Rate | Peak rates are up to 70Mbps |
Networking Capability | The number of chain hops in an Ad-hoc network is more than 9. The number of nodes in an Ad-hoc network is not less than 32 |
Data Characteristics | |
Rf Interface | N*2，SMA*1 |
Video Display | 17 inch HD bright screen |
Cable Interface | RJ45 Waterproof port *2 |
Intercom Interface | 6-core navigational plug |
Data Interface | 3-core navigational plug (spare) |
Power Interface | 2-core navigational plug |
4G Function | All-netcom |
Signal Light | Five signal lights |
Power switch | Flip the self-locking switch |
Encryption Mode | AES 256 |
Electrical Characteristics | |
Operating Voltage | DC 14.8V |
Working Current | ≤ 7A |
Power Consumption | The average power consumption of the machine is 60W |
Battery Capacity | 10Ah |
Physical Characteristics | |
Operating Temperature | 20~+55℃ |
Storage Temperature | -50℃~ +70℃ |

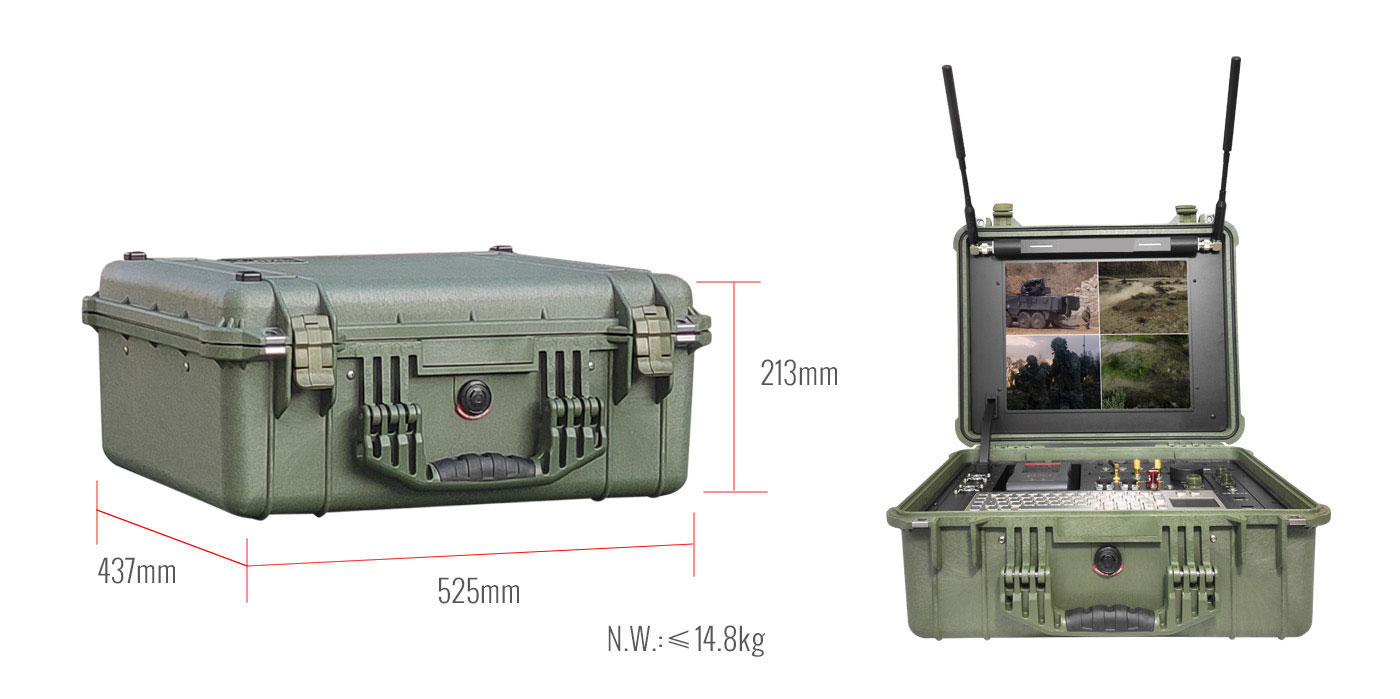

Overall Dimension | 52.5*43.7*21.3cm |
Equipment Weight | 14.8kg (including battery) |
Application
Wireless broadband communications are provided for "peace and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, emergency rescue and disaster relief, daily patrols, and firefighting.
