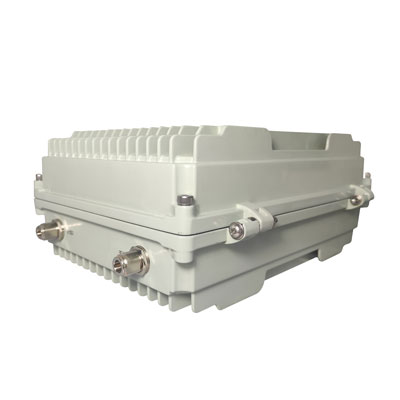

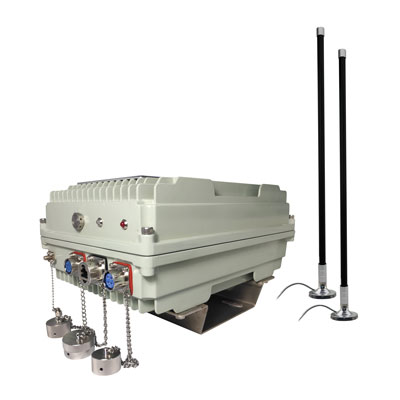

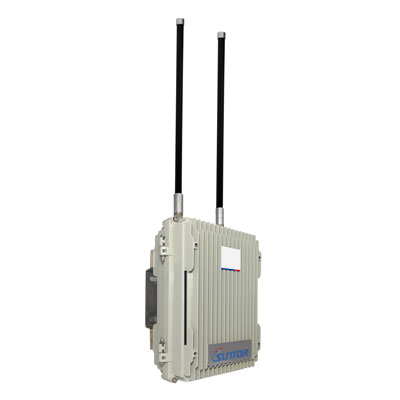

Model: MF43S
The equipment has high transmitting power, covers a long communication distance, integrates data transmission and reception, dynamic routing, relay forwarding, and forms a wireless multi-hop broadband network with other node equipment to provide users with wireless transmission services for voice, data and video and other multimedia services.
Product Details

Product Introduction




Product Features


  • Operating frequency 1300-1500MHz (200MHz-1.5GHz can be customized);

  • Up to 100 Mbps bitstream;

  • Line-of-sight transmission distance of 10-100 km;

  • Transparent transmission of IP data;

  • Support two-way intercom;

  • Centerless self-organizing network, automatic selection of path, flexible networking methods, easy to use;

  • Multi-hop to expand coverage and extend coverage distance;

  • Long transmission distance;

  • High resistance to interference;

  • Good wrap-around properties;



Centerless Networking


Nodes with equal status can serve as terminal nodes, relay nodes or central nodes. Nodes automatically identify and select the optimal route for bandwidth data.



Diagram




System Parameter

Operating Frequency

1300~1500MHz

Carrier Bandwidth

5.0/10.0/20.0/40.0MHzFlexible and Configurable

Transmission System

COFDM

Modulation Mode

BPSK/QPSK/16QAM/64QAMSelf-Adaptation

Transmission Capacity

Peak speed can reach more than 100Mbps

Transmitted Power

10W

Receiving sensitivity

-100dBm@5MHz

Video Input

Supports IP network video input and WIFI video access (HDMI/AV needs to be customized)

Networking Function

Networking Capability

≥64 nodes

Network Hop

10 hops

Network Topology

No central network, star network, chain network, mesh network, etc

Encryption Mode

DES (DefaultAES128 / AES256 (Additional Option

Power supply mode

DC 24-36V Power supply

Device power consumption

≤90W

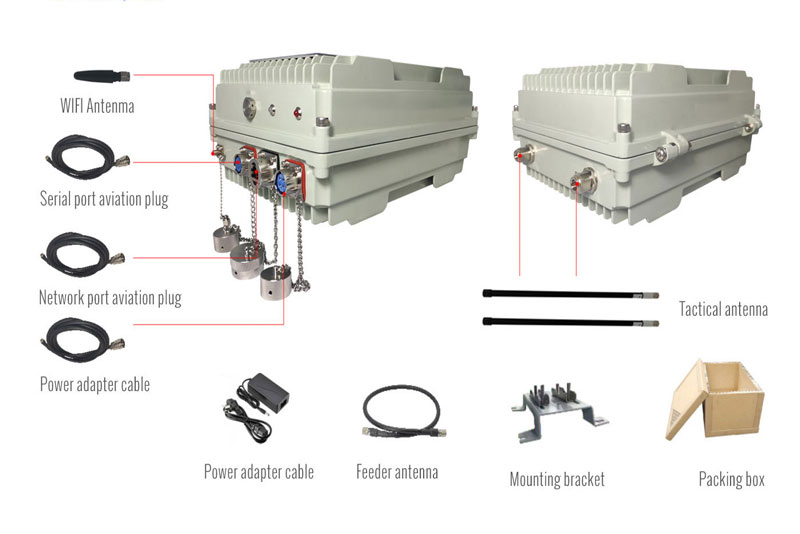

Device Interface

Antenna Interface

N type x 2

GPS Interface

SMA head

WIFI Interface

SMA head

Ethernet Interface

Navigation adapter

Physical Index

Equipment Size

≤340×240×135mm

Equipment Weight

≤6.5kg

Protection Class

IP67

Operating Temperature

-40℃~+65


Application


Wireless broadband communications are provided for "peace and emergency" tasks such as emergency response, anti-terrorism and riot prevention, covert reconnaissance, special operations, emergency rescue and disaster relief, daily patrols, and firefighting.
