CD15 delivers secure 20km video transmission with dual-band MIMO, 24Mbps speed, and 160g portability—perfect for emergency response, utility patrols, and maritime operations.
1. Product Introducition

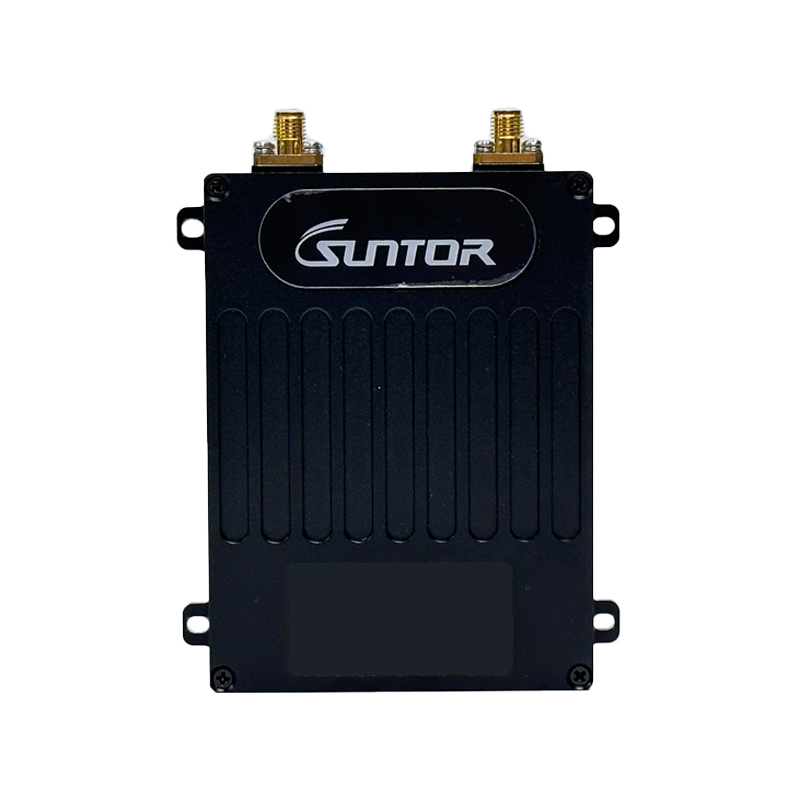

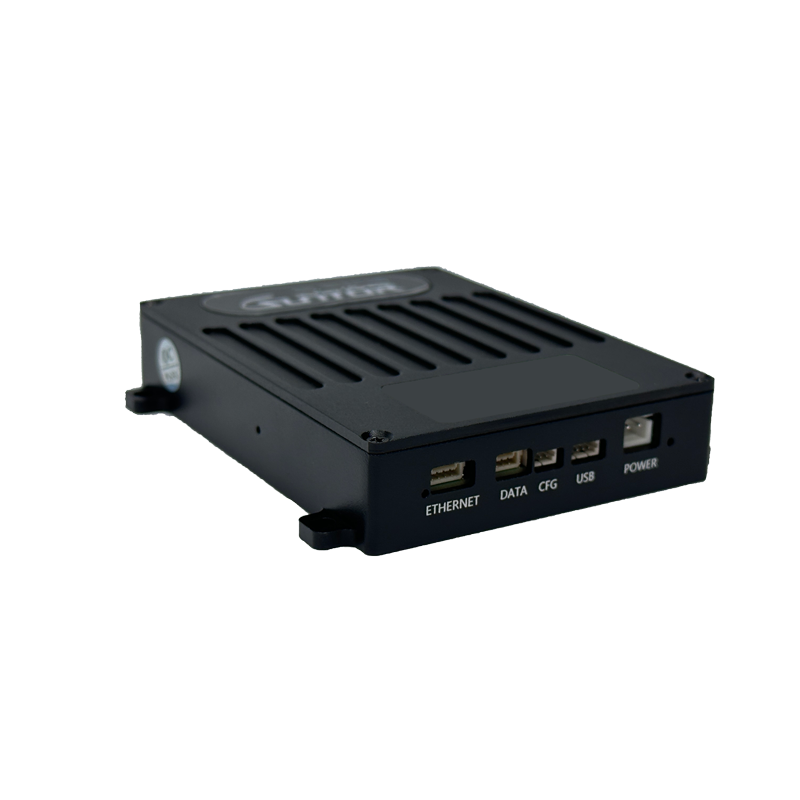

Suntor V20 Drone Video Transmission Radio integrates HD video, audio and control signal transmission. It supports full-duplex communication, delivers 20KM air-to-ground range, and adapts to point-to-point & star network topologies. Weighing only 160g with <6W power consumption, it comes with Ethernet and serial ports, providing stable and high-performance communication for professional unmanned systems.
2. Feture
160 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
3.Specifications
| Wireless | System | ||
| Technology | TDD-OFDM / MIMO / 1T2R | Serial Port | 1 TTL |
| Modulation | QPSK / 16QAM / 64QAM | Video Port | 1ETH |
| Data Rate | 24Mbps @ 10MHz (Peak) | Security | AES128 Encryption |
| Frequency Range | 1428-1448MHz (Standard) 2401-2481MHz (Optional) 806-826MHz (Optional) | Power | Power Supply: DC12V-27V Power Consumption (Air): ≤ 6W @ DC12V |
| Bandwidth | 5MHz / 10MHz / 20MHz | ||
| Tx Power | 25dBm ±2 | Interfaces | |
| Rx Sensitivity | -99dBm @ 5MHz | RF Antenna | SMA × 2 |

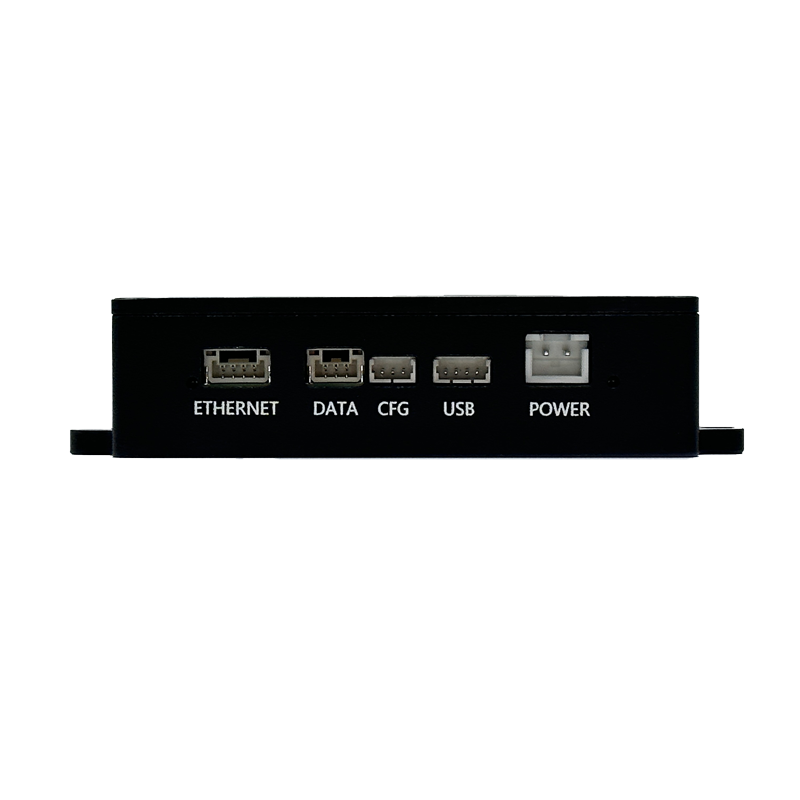

| Physical | Serial Port Interface | JST × 1 | |
| S.BUS Interface | N/A | ||
| Dimension | ≤ 102× 65× 22mm (Air) | Video Port Interface | JST(ETH)×1 |
| Weight | ≤ 160g (Air) | Power Input | JST× 1 |
4.Accessoriess
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 2
ETH Cable × 1
JST Serial Cable × 1
JST Power Cable × 1
