Lightweight (≤230g) drone radio with MIMO/TDD-OFDM, 24Mbps rate, 20KM range, point-to-multipoint, 1.4G/2.4G/806MHz bands, rich interfaces, AES128 encryption, 12–27V power, ≤6W consumption.
1.Product Introduction

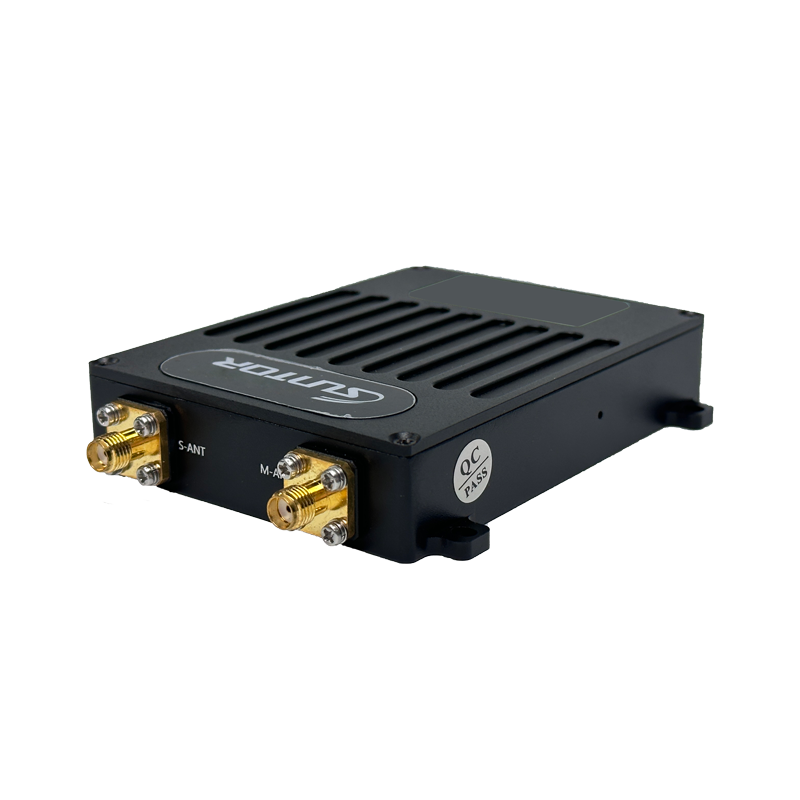

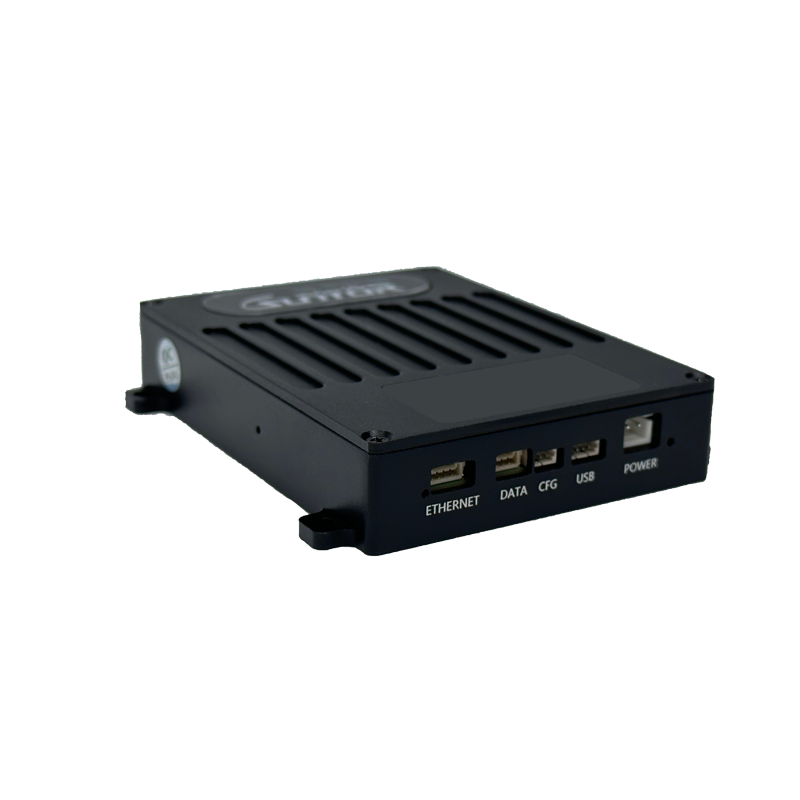

Suntor CD15Pro Drone Video Transmission Radio integrates HD video, audio and control signal transmission. It supports full-duplex communication, delivers 20KM air-to-ground range, and adapts to point-to-point & star network topologies. Weighing only 230g with <6W power consumption, it comes with Ethernet and serial ports, providing stable and high-performance communication for professional unmanned systems.
2.Feature
230 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance
3.Specifications
| Wireless | System | ||
| Technology | TDD-OFDM / MIMO / 1T2R | Serial Port | 1 TTL+ 1 RS232 + 1 S.BUS |
| Modulation | QPSK / 16QAM / 64QAM | Video Port | 2ETH or 1 ETH + 1 SDI/HDMI(Customized) |
| Data Rate | 24Mbps @ 10MHz (Peak) | Security | AES128 Encryption |
| Frequency Range | 1428-1448MHz (Standard) 2401-2481MHz (Optional) 806-826MHz (Optional) | Power | Power Supply: DC12V-27V Power Consumption (Air): ≤ 6W @ DC12V |
| Bandwidth | 5MHz / 10MHz / 20MHz | ||

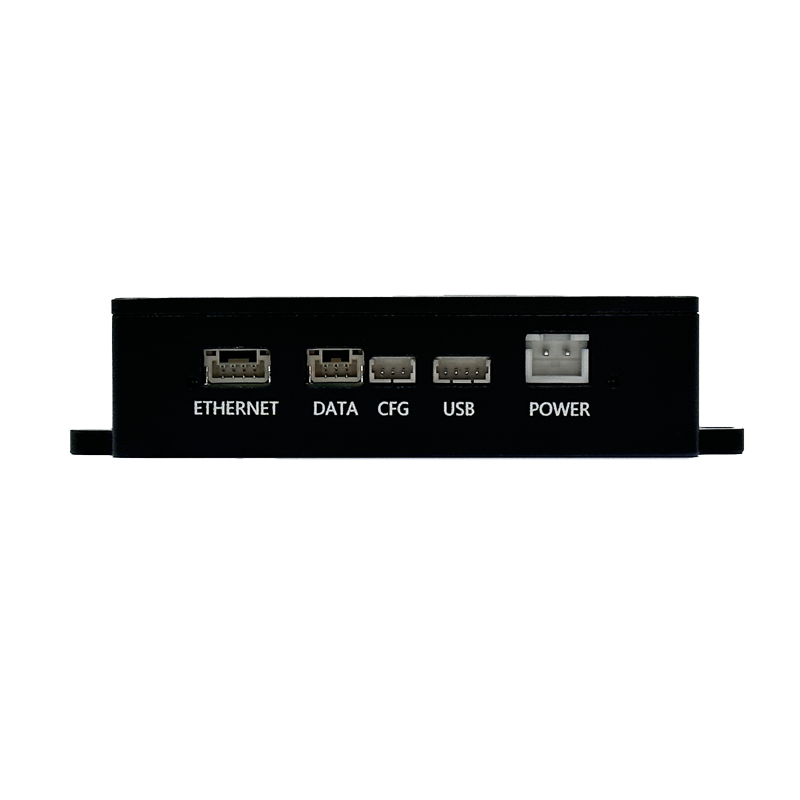

| Tx Power | 25dBm ±2 | Interfaces | |
| Rx Sensitivity | -99dBm @ 5MHz | RF Antenna | SMA × 2 |
| Physical | Serial Port Interface | JST × 2 | |
| S.BUS Interface | JST× 1 | ||
| Dimension | ≤ 94.5× 77× 32mm (Air) | Video Port Interface | JST(ETH)×2 or JST(ETH) ×1+ SDI/HDMI ×1(Cus.) |
| Weight | ≤230g (Air) | Power Input | XT30 |
4.Accessories
OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 2
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
