The MD36Pro Drone Mesh Radio is a compact and high-performance MANET communication device designed for UAVs, unmanned systems, emergency response, and tactical networking applications. Featuring 4W transmit power, COFDM modulation, frequency hopping technology, and self-healing Mesh networking, it supports over 64 nodes and delivers up to 52Mbps throughput.

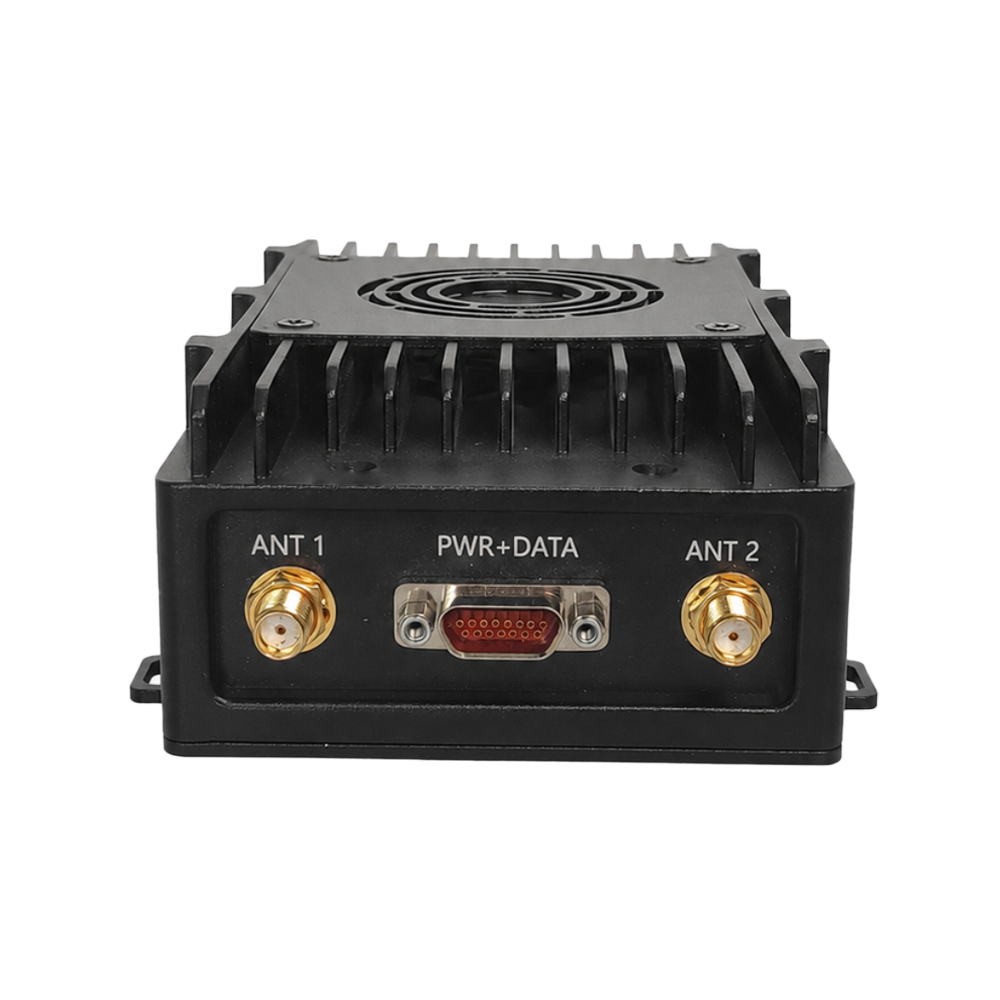

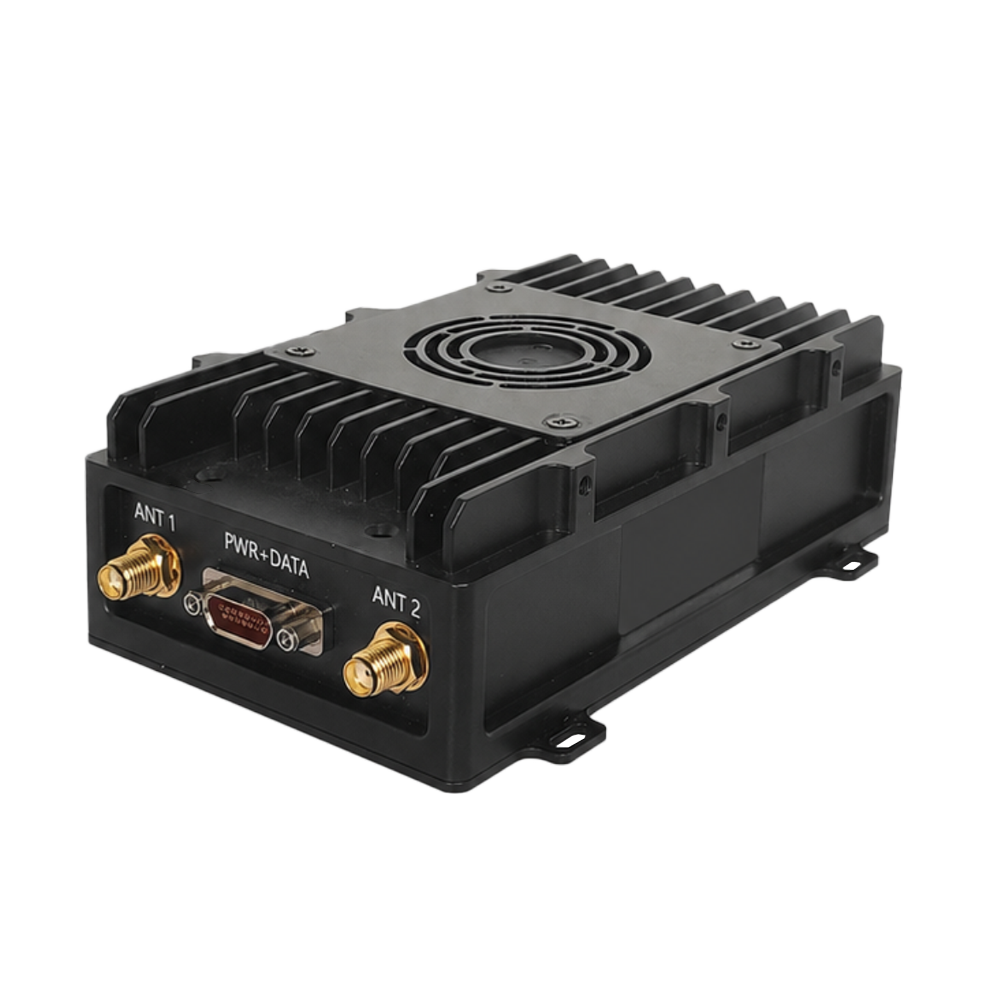

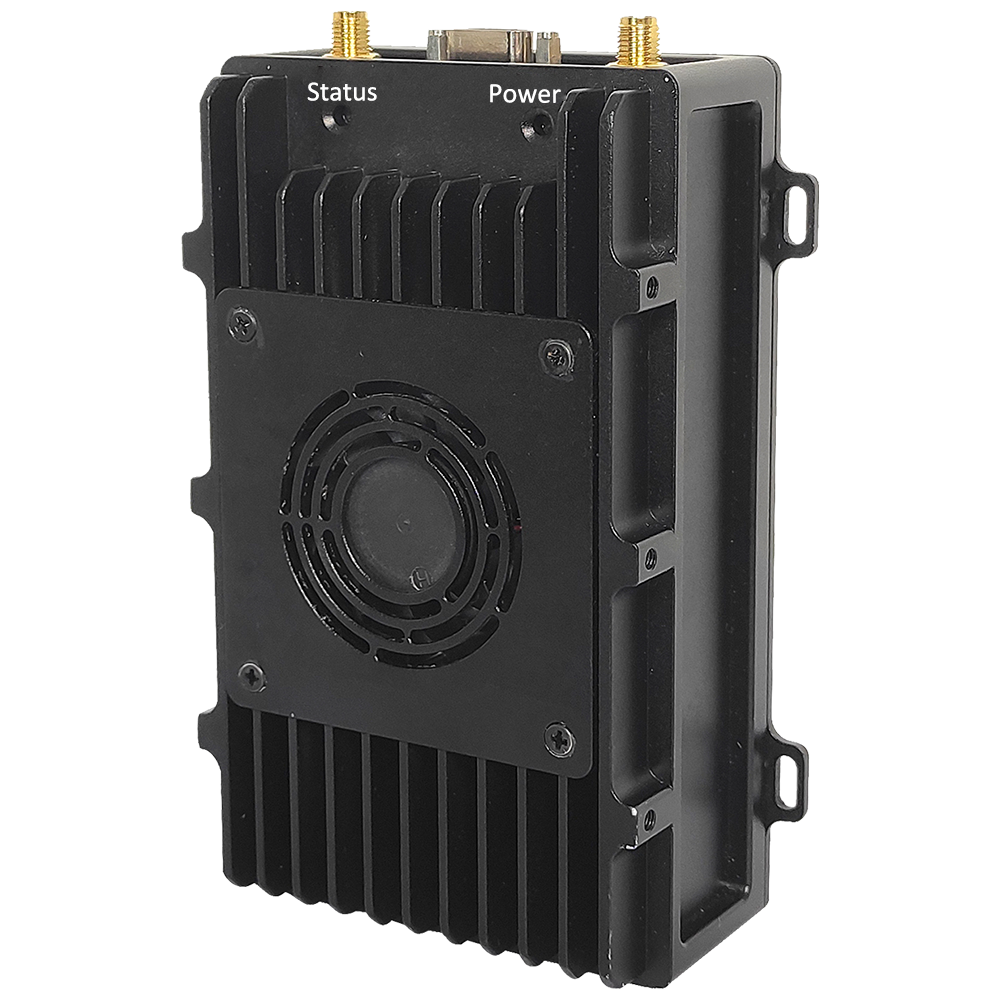

MD36Pro Drone Mesh Radio
Reliable Broadband MANET Communication for UAV Networks
The MD36Pro Drone Mesh Radio is a compact and high-performance MANET communication system designed for UAVs, emergency response, public safety, and tactical communication applications.
Featuring 4W RF transmission power, self-forming Mesh networking, AES128/AES256 encryption, and data rates up to 52Mbps, the MD36Pro provides reliable long-range wireless connectivity in complex environments.
Key Features
Up to 50km Air-to-Ground Transmission Distance
52Mbps Broadband Data Rate
Supports More Than 64 Mesh Nodes
Over 10 Networking Hops
AES128 / AES256 Encryption
FHSS Frequency Hopping Technology
Compact Size and Lightweight Design
IP65 Industrial Protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 1300–1500 MHz (Customizable) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Transmission Technology | COFDM |
| Modulation Mode | BPSK / QPSK / 16QAM / 64QAM (Adaptive) |
| Peak Data Rate | 52 Mbps @ 20MHz |
| RF Output Power | 2W × 2 (4W Total) |
| Receive Sensitivity | ≤ -100 dBm @ 5MHz |
| Transmission Distance | Up to 50 km Air-to-Ground |
| Networking Capability | More Than 64 Mesh Nodes |
| Networking Hops | More Than 10 Hops |
| Network Topology | Ad-Hoc / Mesh / Star / Chain Network |
| Encryption | AES128 / AES256 |
| Frequency Hopping | FHSS Supported |
| Ethernet Interface | J30J Connector |
| Serial Interface | J30J Connector |
| Power Interface | J30J Connector |
| Power Supply | DC 12V – 26V |
| Power Consumption | ≤30W Typical / ≤45W Peak |
| Protection Rating | IP65 |
| Operating Temperature | -40°C to +65°C |
| Dimensions | ≤128 × 88 × 42 mm |
| Weight | ≤450 g |
Applications
Drone Swarm Communication
Emergency Response Networks
Public Safety Operations
Border Surveillance
Industrial Inspection
Tactical Communication Systems
FAQ
What is the maximum communication range?
The MD36Pro supports up to 50km air-to-ground transmission.
How many Mesh nodes are supported?
More than 64 nodes can be connected simultaneously.
Is data transmission secure?
Yes. AES128 and AES256 encryption are supported.
Can it be installed on drones?
Yes. The compact size and lightweight design make it ideal for UAV integration.
Which industries can benefit from MD36Pro?
Public safety, emergency response, defense, industrial inspection, and drone communication applications.
