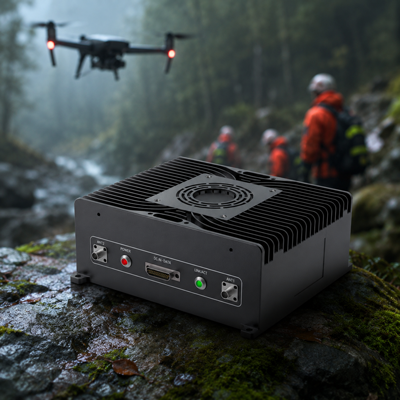

MD43Pro Drone Mesh Radio | 20W IP Mesh for UAV
1. Product Overview
The MD43Pro Drone Mesh Radio is a professional-grade broadband wireless communication device developed for unmanned aerial systems requiring reliable, long-range networking capabilities. Based on COFDM transmission technology and an IP Mesh networking architecture, the radio enables robust broadband communication without relying on fixed network infrastructure.
Unlike conventional point-to-point radio links, the MD43Pro dynamically forms a self-organizing and self-healing Mesh network,allowing multiple UAVs, ground stations, vehicles, and command centers to exchange video, Ethernet data, telemetry, and control information simultaneously. Intelligent routing algorithms automatically optimize communication paths and maintain network connectivity even when individual nodes move or become unavailable.
With 20W RF transmission power, adaptive modulation (BPSK/QPSK/16QAM/64QAM), broadband throughput up to 52 Mbps, and support for 64 or more Mesh nodes, the MD43Pro provides stable and secure wireless
networking for demanding airborne communication applications.
2. Key Features
20W High-Power RF Architecture
Dual-channel 10W RF amplifiers deliver enhanced communication distance, stronger signal penetration, and improved link stability for long-range UAV operations.
COFDM Broadband Wireless Transmission
Advanced COFDM technology minimizes multipath interference while maintaining high transmission reliability in dynamic environments.
Intelligent IP Mesh Networking
Supports infrastructure-free Mesh networking with automatic route discovery, dynamic path optimization, and self-healing capabilities.
Adaptive Modulation
Automatically switches between BPSK, QPSK, 16QAM, and 64QAM according to channel conditions, optimizing communication stability and spectrum efficiency.
Secure Communication
Integrated AES128 and AES256 encryption mechanisms provide comprehensive protection for sensitive wireless communication.
Anti-Jamming Performance
IFS and FHSS technologies significantly improve communication robustness in high-interference electromagnetic environments.
3. Applications
The MD43Pro Drone Mesh Radio is widely used in:
UAV Video Transmission
Long-Range Drone Communication
Emergency Rescue Operations
Public Safety Communications
Tactical Communication Networks
Forest Fire Monitoring
Maritime Surveillance
Mobile Command Systems
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 1300-1500 MHz (Customizable) |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Transmission Technology | COFDM |
| Modulation Mode | BPSK / QPSK / 16QAM / 64QAM (Adaptive) |
| Peak Data Rate | 52 Mbps @ 20MHz |
| RF Output Power | 2W × 2 (4W Total) |
| Receive Sensitivity | ≤-100 dBm @ 5MHz |
| Transmission Distance | Up to 50 km Air-to-Ground |
| Networking Capability | More Than 64 Mesh Nodes |
| Networking Hops | More Than 10 Hops |
| Network Topology | Ad-Hoc / Mesh / Star / Chain Network |
| Encryption | AES128 / AES256 |
| Frequency Hopping | FHSS Supported |
| Ethernet Interface | J30J Connector |
| Serial Interface | J30J Connector |
| Power Interface | J30J Connector |
| Power Supply | DC 12V - 26V |
| Power Consumption | ≤30W Typical / ≤45W Peak |
| Protection Rating | IP65 |
| Operating Temperature | -40℃ to +65℃ |
| Dimensions | ≤128 × 88 × 42 mm |
| Weight | ≤450 g |
5. Why Choose MD43Pro Drone Mesh Radio?
Professional-grade COFDM broadband communication technology
Up to 150 km air-to-ground transmission capability
20W high-power RF output for extended coverage
Infrastructure-free IP Mesh networking architecture
Supports 64+ networking nodes with multi-hop routing
AES128/AES256 secure wireless communication
IFS/FHSS intelligent anti-jamming technologies
Broadband transmission up to 52 Mbps
Low-latency IP data transmission
Designed for demanding UAV communication applications
6. FAQ
The MD43Pro combines COFDM broadband transmission with IP Mesh networking, enabling reliable wireless communication for HD video, Ethernet data, telemetry, and command information in dynamic environments.
Under line-of-sight conditions, the MD43Pro supports up to 150 km air-to-ground transmission, making it suitable for long-range UAV communication missions.
The system supports more than 64 Mesh nodes, allowing multiple UAVs, vehicles, and command stations to establish a self-organizing and self-healing wireless network.
Yes. The radio supports AES128 and AES256 encryption, protecting video streams, telemetry, and IP data from unauthorized access during mission-critical operations.
The MD43Pro is designed for professional UAV communication applications, including drone data links, emergency response, public safety, border surveillance, tactical communications, industrial inspection, disaster relief, and mobile command networks.
