MH36Pro Handheld Mesh Radio integrates COFDM IP Mesh technology with 4W RF power, 52Mbps data rate, AES encryption and multi-node networking for reliable emergency communication.

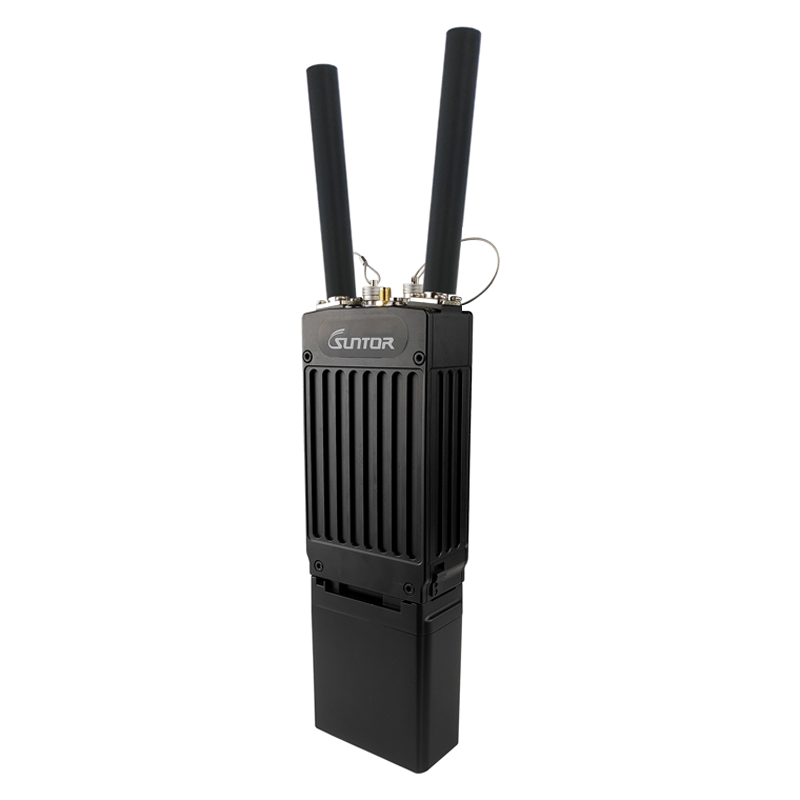

Handheld Mesh Radio MH36Pro COFDM IP Mesh for Rescue
1. Product Overview
MH36Pro is a high-performance handheld IP Mesh Radio designed for reliable wireless communication in complex and infrastructure-limited environments.
Based on advanced COFDM transmission technology, MH36Pro provides stable broadband wireless links with high anti-interference capability, flexible networking and secure data transmission.
The radio supports self-organizing Mesh networks without fixed infrastructure, enabling rapid deployment for emergency communication, public safety, industrial operations and remote area applications.
With a compact structure, 4W transmission power, up to 52Mbps data rate and AES128/256 encryption, MH36Pro delivers a professional-grade communication solution for mission-critical scenarios.
2. Key Features
1. COFDM-Based IP Mesh Communication
MH36Pro adopts COFDM wireless transmission technology to improve communication reliability under multipath interference and complex propagation conditions.
The system supports adaptive modulation modes:
BPSK
QPSK
16QAM
64QAM
allowing automatic optimization between transmission distance and data throughput.
2. High-Speed Broadband Data Transmission
MH36Pro supports up 52Mbps peak data rate @ 20MHz bandwidth
The high-speed wireless link enables transmission of:
Voice communication
Video streams
Ethernet data
Control information
for integrated communication networks.
3. Self-Organizing Mesh Network Capability
The device supports decentralized IP Mesh networking without relying on cellular networks or existing communication infrastructure.
Technical networking capability:
≥52 Mesh nodes
More than 10 networking hops
Ad-Hoc network topology
Chain network topology
Users can quickly build scalable communication networks according to operational requirements.
4. Fast Network Deployment
MH36Pro provides rapid communication setup:
Startup access time: ≤5 seconds
Automatic network establishment
Flexible deployment in temporary environments
It is suitable for emergency response teams requiring immediate communication availability.
5. Secure Wireless Communication
For mission-critical communication protection, MH36Pro supports:
AES128 encryption
AES256 encryption
The security mechanism ensures reliable protection for voice, video and data transmission.
6. Compact and Rugged Industrial Design
MH36Pro is designed for outdoor professional applications.
Key design features:
Compact handheld form factor
IP65 protection rating
Operating temperature: -30℃ to +65℃
Removable lithium battery
Lightweight design
The device can maintain stable operation in harsh environments.
3. Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Handheld Mesh Radio |
| Wireless Technology | COFDM IP Mesh |
| Frequency Range | 1300～1500MHz (Customized) |
| Transmission Power | 4W |
| RF Output | 2W × 2 |
| Bandwidth | 5MHz / 10MHz / 20MHz |
| Data Rate | 52Mbps@20MHz Peak |
| Networking Capability | ≥52 Nodes |
| Networking Hops | >10 Hops |
| Security | AES128/256 Encryption |
| Modulation | BPSK/QPSK/16QAM/64QAM |
| Transmission Distance | Up to 5KM Open Area |
| Network Topology | Ad-Hoc / Star / Chain |
| Video Interface | HDMI/SDI Optional |
| Ethernet Interface | Aviation to RJ45 |
| Antenna Interface | TNC ×2 |
| GPS | Optional |
| Battery | DC16.8V 3000mAh Li-ion |
| Power Consumption | ≤25W Typical |
| Protection Level | IP65 |
| Dimension | ≤245×77×44mm |
| Weight | ≤1200g |
4. Applications
The MD43Pro Drone Mesh Radio is widely used in:
Emergency Communication
Public Safety Communication
Industrial Wireless Communication
5. FAQ
A: MH36Pro adopts COFDM IP Mesh technology with adaptive modulation including BPSK, QPSK, 16QAM and 64QAM to provide stable wireless communication performance.
A: MH36Pro supports ≥52 Mesh nodes and more than 10 networking hops, allowing users to create scalable wireless communication networks.
A: MH36Pro supports up to 52Mbps peak data rate at 20MHz bandwidth, suitable for voice, video and broadband data transmission.
A: Yes. MH36Pro supports AES128 and AES256 encryption to ensure secure transmission of mission-critical communication data.
A: Yes. As a manufacturer, we provide customized frequency ranges, interfaces, functions and OEM/ODM solutions according to customer requirements.
