MU36/40Pro is a high-power COFDM IP Mesh Radio designed for unmanned systems. Featuring Mesh networking, IFS/FHSS frequency hopping, AES128/256 encryption, and up to 52Mbps throughput, it provides secure, long-range wireless communication for UAV, UGV, USV, and robotic platforms.

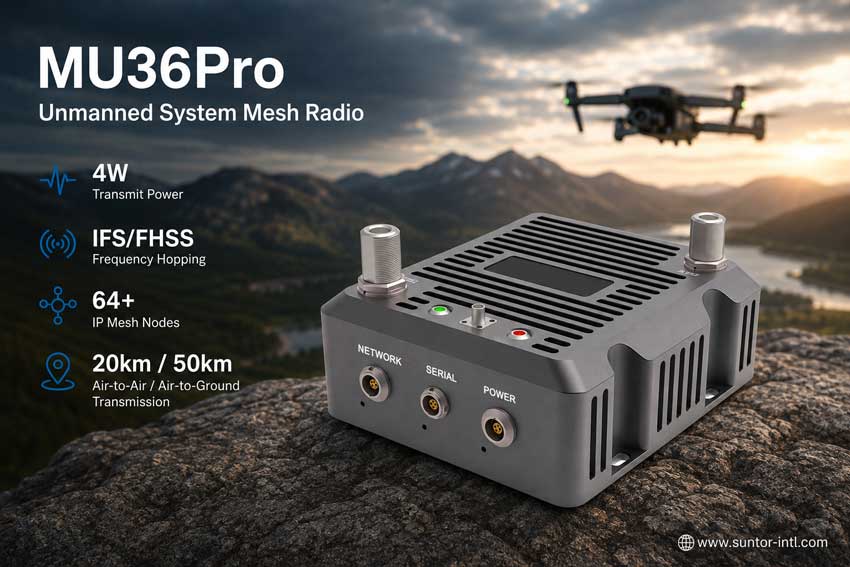

MU36/40Pro Unmanned System Mesh Radio
IP Mesh Radio with COFDM & FHSS for Unmanned Systems
The MU36/40Pro Unmanned System Mesh Radio is a rugged, high-performance wireless communication platform specifically designed for autonomous and unmanned applications. Combining COFDM broadband transmission, Self-Healing Mesh networking, and IFS/FHSS Frequency Hopping Technology, it enables stable, secure, and low-latency data transmission in complex operational environments.
Supporting 4W or 10W transmit power, the system delivers communication distances of up to 20 km in open areas and 50 km air-to-ground, while maintaining broadband connectivity of up to 52 Mbps. It supports over 64 IP Mesh nodes, making it ideal for scalable multi-platform deployments.
Key Features
High-Power COFDM Broadband Transmission
Built on advanced COFDM modulation, MU36/40Pro ensures robust broadband wireless links with excellent anti-interference capability, enabling stable transmission of video, data, and IP traffic in challenging RF environments.
Intelligent IP Mesh Networking
The integrated Mesh networking technology automatically establishes self-forming and self-healing networks, allowing every node to relay data dynamically without centralized infrastructure.
Benefits include:
Self-forming network
Self-healing routing
Multi-hop communication
More than 64 Mesh nodes
Over 10 networking hops
IFS/FHSS Frequency Hopping Technology
Supporting IFS/FHSS Frequency Hopping, the radio rapidly changes operating frequencies to minimize interference, improve anti-jamming capability, and enhance communication security in contested electromagnetic environments.
Suitable for:
Emergency response
Border security
Public safety
UAV swarm operations
High-Speed Wireless Data Transmission
With a peak throughput of 52 Mbps, MU36/40Pro efficiently supports:
HD video transmission
Telemetry
Command & Control (C2)
Sensor data
IP networking
Rugged Industrial Design
Designed for demanding outdoor environments:
IP65 protection
Operating temperature: -40°C to +65°C
Wide DC input: 20–36V
Compact size
Lightweight housing
Technical Highlights
| Feature | Specification |
|---|---|
| Transmission Technology | COFDM |
| Networking | IP Mesh |
| Frequency Hopping | IFS / FHSS |
| Encryption | AES128 / AES256 |
| Max Data Rate | 52 Mbps |
| Networking Nodes | ≥64 |
| Networking Hops | >10 |
| Transmission Distance | 20 km Ground / 50 km Air-to-Ground |
| Protection | IP65 |
| Operating Temperature | -40°C ~ +65°C |
Typical Applications
Why Choose MU36/40Pro?
Advanced COFDM broadband transmission
Intelligent self-healing Mesh networking
IFS/FHSS anti-jamming technology
AES128/256 secure encryption
High-speed 52 Mbps data throughput
Long-range wireless communication
Supports UAV, UGV, USV, and robotics
Rugged industrial IP65 design
FAQ
Q1. What is the MU36/40Pro Mesh Radio used for?
It is designed for reliable wireless communication in unmanned systems including UAVs, UGVs, USVs, robotic platforms, emergency response, and tactical communication networks.
Q2. What wireless technologies does the radio support?
MU36/40Pro integrates COFDM broadband transmission, IP Mesh networking, and IFS/FHSS Frequency Hopping Technology for robust, interference-resistant communication.
Q3. How many Mesh nodes can be supported?
The system supports more than 64 Mesh nodes with over 10 networking hops, enabling scalable multi-node deployments.
Q4. What is the maximum communication distance?
The radio supports communication distances of up to 20 km in open areas and 50 km air-to-ground, depending on deployment conditions.
Q5. How is communication security ensured?
The system features AES128/256 encryption combined with IFS/FHSS frequency hopping to protect data integrity and resist interference.
Q6. Is the MU36/40Pro suitable for harsh environments?
Yes. With IP65 protection, a -40°C to +65°C operating range, and wide DC power input, it is designed for demanding outdoor and industrial environments.
